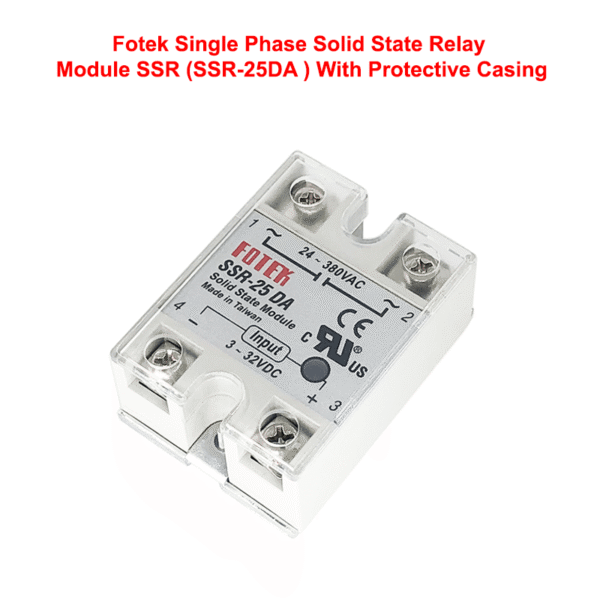

Fotek Single Phase Solid State Relay Module SSR (SSR-25DA ) With Protective Casing
Rated 5.00 out of 5 based on 3 customer ratings
🎁 Exclusive New Member Deal: Get 15% OFF Your First Order Under $60 – Use code WELCOME15 – Offer ends in
★★★★★5.0· 3 reviews
Categories: , Steel Baths, Tennisschläger, Stem Accessories, Sterilisatoren Für Nagelwerkzeuge
DescriptionBasic Info.Model NO.SSR-25DAProtective Characteristics Sealed RelayLoad Current 25AWeight 105gLoad Voltage 24-380VACInput 3-32VDCSpecification 25AProduct DescriptionFOTEK Single phase Solid State Relay ModuleFeatures: * High dielectric strength over 4KV * High isolation strength over 100MΩ/500VDC * With over heat protection circuit (120ºC) * High surge current sustenance * High surge voltage sustenance * Conformity with EN60947-4-3 and EN60950Guide of Model: Technical parameters:TypeTerminal TypeModelSSR-10DASSR-25DASSR-40DARated Load Current10A25A40AInput DataOperating Voltage3~32VDCMin. ON/OFF VoltageON>2.4V , OFF <1.0VTrigger Current7.5mA / 12VControl MethodZero Cross TriggerOutput DataOperating Voltage24~380VACMin. Block Voltage600VAC (Repetive)Voltage Drop1.6V / 25°CMax. One Cycle Surge135A275A410ALeakage Current3.0mA3.0mA3.0mAResponse TimeON<10ms , OFF<10msGeneral DataDielectric StrengthOver 2.5KVAC / 1min.Isolation StrengthOver 50MΩ / 500VDCOperating Temperature-20°C ~ 80°CHousing MaterialIntensive ABSWeightAppr. 105gOutline dimension & Connection: Application:
